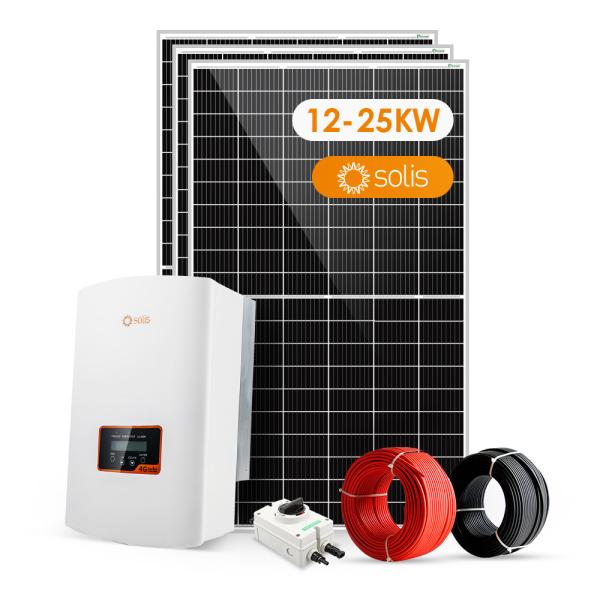

Solar Kit 12KW 25KW Solar System For Commercial Use Grid Tie System
Product Description
【High Efficiency】Fully self-powered off-grid system, maximizing system output by reducing mismatch loss. Portable backup power. Ideal for a variety of off-grid applications including recharging batteries in 12 and 24 volt arrays, pump systems, signaling systems, RVs, boats, trailers, cabins, engine room water pumps and other off-grid applications.
【Multifunctional】The solar panel is perfect for 6 volt battery charging or multiple panels can be connected in series for 24/48 volt battery charging or grid-connected
【Easy to Install】Package includes: Solar panel only. Pre-drilled holes on the back of the panel allow for quick installation and fastening. Compatible with different mounting systems such as Z-bracket, pole mount and tilt mount.
【LONG LIFE】Polycrystalline A-grade solar cell; Heavy-duty anodized aluminum frame. The weatherproof solar panels feature a more durable aluminum alloy frame. windproof
Rainproof, but not submerged in water. 1 year warranty on materials and workmanship.
【Durable】Grade A solar cells with monocrystalline silicon cells; heavy-duty anodized aluminum frame. The weatherproof solar panels feature a more durable aluminum alloy frame. it is windproof and
Rainproof, but not submerged in water.
Mono Solar Panels
Peak Power Watts: 410W (PNG410M-72H)
Maximum Power Voltage: 42.3V
Maximum Power Current: 9.69A
Warranty: 10years
Short Circuit Current: 10.60A
Dimensions:2008×1002×40 mm (79.06×39.45×1.57 inches)
Weight:22.5 kg (49.6 lb)
On Grid Inverter & Data Logging Stick
Max.DC Input Power: 6/7/8/9/10KW
Max. DCInput Voltage: 600V
MPPT Voltage Range: 50-500V
Rated Grid Voltage: 208/240V(US); 220/230V(EU)
Warranty: 5 Years (EU) 10 Years (US)
Wifi Stick For STD, Lan & GPRS Optional.
Monitoring System
Data Logging Stick allows you to receive information from solar power system, in order to keep you informed about the situation of
your PV system, and the atmosphere conditions, everywhere and every time, thanks to our web server, accessible via Wi-Fi,Lan or
GPRS.App Available for PC, IOS & Andriod
PV Mounting System
Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional
Warranty: 10 Years
DC Cable & MC4 Connector
DC Cable & MC4 Connector
Cross Section: 4mm2, 6mm2 Optional
Rated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years
PV Tools
Wire Cable Cutter & Stripper,
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly Tool
| Components | PNG80KW-ON | PNG100KW-ON | PNG150KW-ON | PNG200KW-ON |
| 410W Solar Panel | 204 Piece | 256 Piece | 384 Piece | 512 Piece |
| DC Isolation Switch | 12 Set | 16 Set | 24 Set | 32 Set |
| Grid Tied Inverter | 80KW | 50KW | 50KW | 50KW |
| AC Isolation Switch | 1 Set | 2 Set | 3 Set | 4 Set |
| DC Cable 4mm2 | 1200 Meters | 1600 Meters | 2400 Meters | 3200 Meter |
| MC4 Connector | 50 Piece | 80 Piece | 100 Piece | 120 Piece |
| Mounting System | 1 Set | 1 Set | 1 Set | 1 Set |
| PV Tools | 1 Set | 1 Set | 1 Set | 1 Set |
FAQ:
1.Do I need batteries for on on grid solar system?
Can I use solar panels and inverters without battery? Yes, if you are connected to an electrical grid, you can use solar panels and inverters without battery storage.
2.What are the commercial uses of solar energy systems?
Solar energy can be used to generate heat for a variety of industrial applications, including desalination, enhanced oil recovery, food processing, chemical production and mineral processing, among others.
3.What is a grid-connected system?
Grid-tied means your solar system is tied to the local utility company's grid. This is what most homes will use because you are protected if your solar system under- or over-produces based on your changing energy needs. What all this means to you is that your utility system acts as your battery space.
